Plain Washers

Introduction to Plain Washers

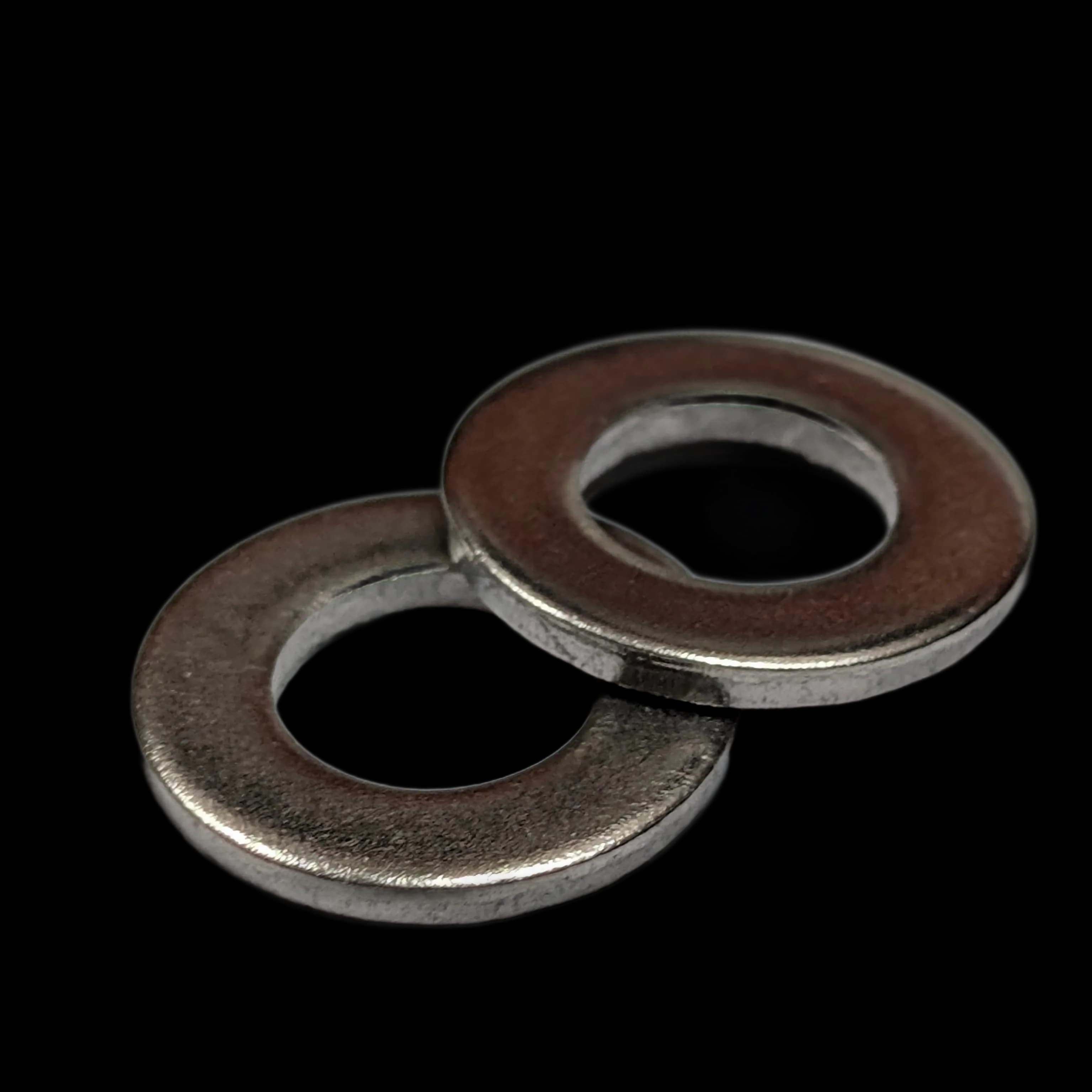

Plain washers, commonly referred to as flat washers, are fundamental mechanical components designed to distribute the load of a threaded fastener across a wider surface area. In industrial and general mechanical assemblies, they play a critical role in preventing fastener heads or nuts from sinking into soft materials or oversized clearance holes. By providing a smooth, flat bearing surface, plain washers help to minimize surface pressure, protect the workpiece from marring during tightening, and ensure a stable connection. They are also frequently utilized as shims or spacers to compensate for gaps, and in certain configurations, they serve as insulating barriers to prevent galvanic corrosion between dissimilar metals.

Materials and Finishes

To meet diverse environmental and structural demands, plain washers are manufactured from a wide array of materials. Common metallic options include Carbon Steel and Stainless Steel (such as grades A2 and A4), which offer excellent durability and mechanical strength. For specialized applications requiring electrical conductivity or corrosion resistance without relying on ferrous metals, Non-Ferrous Metals like brass or copper are used. Additionally, Non-Metallic materials are available for vibration dampening and electrical insulation.

Depending on the material and intended environment, plain washers can be treated with various protective finishes. Available surface treatments range from Plain (Self-Finish) for standard interior use to robust coatings like Zinc Plated, Hot-Dip Galvanized, Black Oxide, Zinc Flake, and PTFE (Teflon). These finishes significantly enhance the washer's resistance to rust, chemical degradation, and environmental wear.

Technical Specifications and Standards

Plain washers are rigorously specified to ensure precise dimensions, tolerances, and mechanical compatibility with mating bolts and nuts. They are categorized into Product Grades, most notably Grade A for precision applications and Grade C for coarser, general-purpose assemblies.

Manufacturing is governed by internationally recognized standards:

• ISO 7089 / DIN 125: Standard series, normal plain washers.
• ISO 7091 / DIN 126: Product Grade C plain washers.
• ISO 7092 / DIN 433: Small series washers typically used for socket head cap screws.
• ISO 7093 / DIN 9021: Large series washers, often referred to as fender washers.
• ASTM Standards: ASTM F436 for hardened steel washers and ASTM F844 for unhardened steel washers.

These standards also define essential Mechanical Properties such as Load Distribution, Embedding Resistance, Friction and Torque Control, and Galling Resistance, ensuring that the washer performs reliably under specific preload conditions.

Common Applications and Industries

Due to their versatility, plain washers are ubiquitous across almost every engineering discipline. In the construction and heavy machinery sectors, they are critical for ensuring stable load distribution and embedding resistance in high-stress structural joints. The automotive and aerospace industries rely on them to manage friction and torque control during precision assembly. Furthermore, in electrical and plumbing systems, non-metallic and specially coated plain washers are used to provide insulation and prevent galvanic corrosion, making them indispensable in comprehensive mechanical design.

Conclusion

Plain washers are indispensable components that enhance the integrity, safety, and longevity of bolted joints. By offering a vast selection of materials, finishes, and strict adherence to global standards, these simple yet highly effective devices provide optimal load distribution and surface protection, making them a cornerstone of modern industrial fastening solutions.
