Wedge-Lock Washers: Advanced Tension-Based Locking

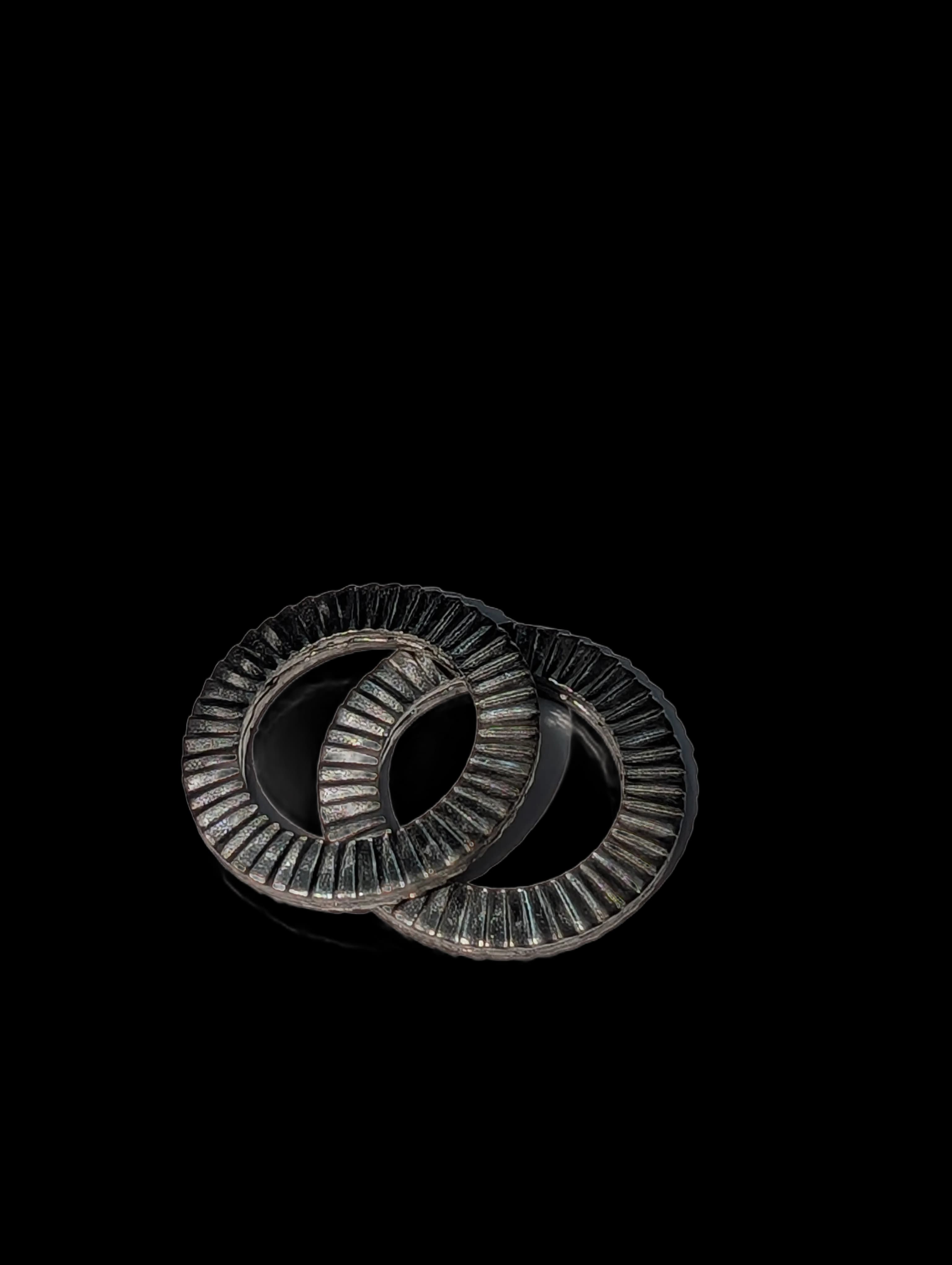

Wedge-lock washers are specialized, high-performance fastening components engineered to prevent the self-loosening of bolted joints under severe vibration and dynamic loads. Unlike traditional lock washers that rely on friction, wedge-lock washers utilize a geometry-based tension mechanism. Supplied in glued pairs, they feature radial teeth on the outside to grip the mating surfaces and interlocking cam faces on the inside. Because the cam angle is steeper than the bolt's thread pitch, any rotational movement caused by vibration forces the washers to climb over each other. This axial expansion actively increases the clamping tension, effectively locking the assembly in place. They are highly critical in structural steel, robotics, heavy transport assemblies, and mining equipment where guaranteed preload maintenance is essential for safety and reliability.

Materials and Finishes

To function correctly, wedge-lock washers must be harder than the mating surfaces. They are primarily manufactured from high-strength Carbon Steel and Stainless Steel (available in A2 and A4 grades for enhanced corrosion resistance). For extreme environments involving high heat or aggressive chemicals, Special Alloys can also be utilized.

A variety of finishes are applied to optimize performance and longevity, including:

• Zinc Flake Coating (e.g. Delta Protekt®): Provides exceptional corrosion resistance without the risk of hydrogen embrittlement.
• Passivated: Used on stainless steel to improve natural corrosion resistance.
• Black Oxide: For a dark finish with mild corrosion protection.
• Natural Finish: Uncoated finish for specific environments.

Technical Specifications and Standards

Wedge-lock washers conform to strict international standards for vibration resistance and dimensional accuracy:

• DIN 25201: The primary standard defining the design, functional requirements, and dimensions of wedge-lock washers, ensuring the proper cam-faced wedges and radial serrations are utilized.
• DIN 65151: Defines the rigorous Junker vibration test, verifying the locking mechanism's effectiveness under transverse loading.
• NASM 1312-7: Aerospace standard for vibration testing of fasteners.
• Mechanical Properties: These washers achieve tension-based locking by ensuring the Cam Angle > Bolt Pitch. They maintain a surface Hardness of HRC 47–50, allowing the radial teeth to properly grip standard and high-strength mating surfaces.

Common Applications and Industries

Due to their superior resistance to dynamic loads, wedge-lock washers are widely specified across demanding industries:

• Heavy Transport and Automotive: Securing critical suspension and engine components.
• Structural Steel: Used in bridges and architectural frameworks subjected to wind and traffic vibration.
• Robotics and Mechatronics: Ensuring zero-loosening in rapid start-stop machinery.
• Power Generation and Mining: Maintaining structural integrity in wind turbines, hydro plants, and heavy excavation equipment.

Conclusion

Wedge-lock washers represent the pinnacle of anti-vibration fastening technology. By converting rotational loosening forces into clamping tension through precise cam geometry, they provide an unyielding grip in the most demanding engineering applications, ensuring long-term structural integrity and reducing maintenance costs.
