Introduction to Star Washers

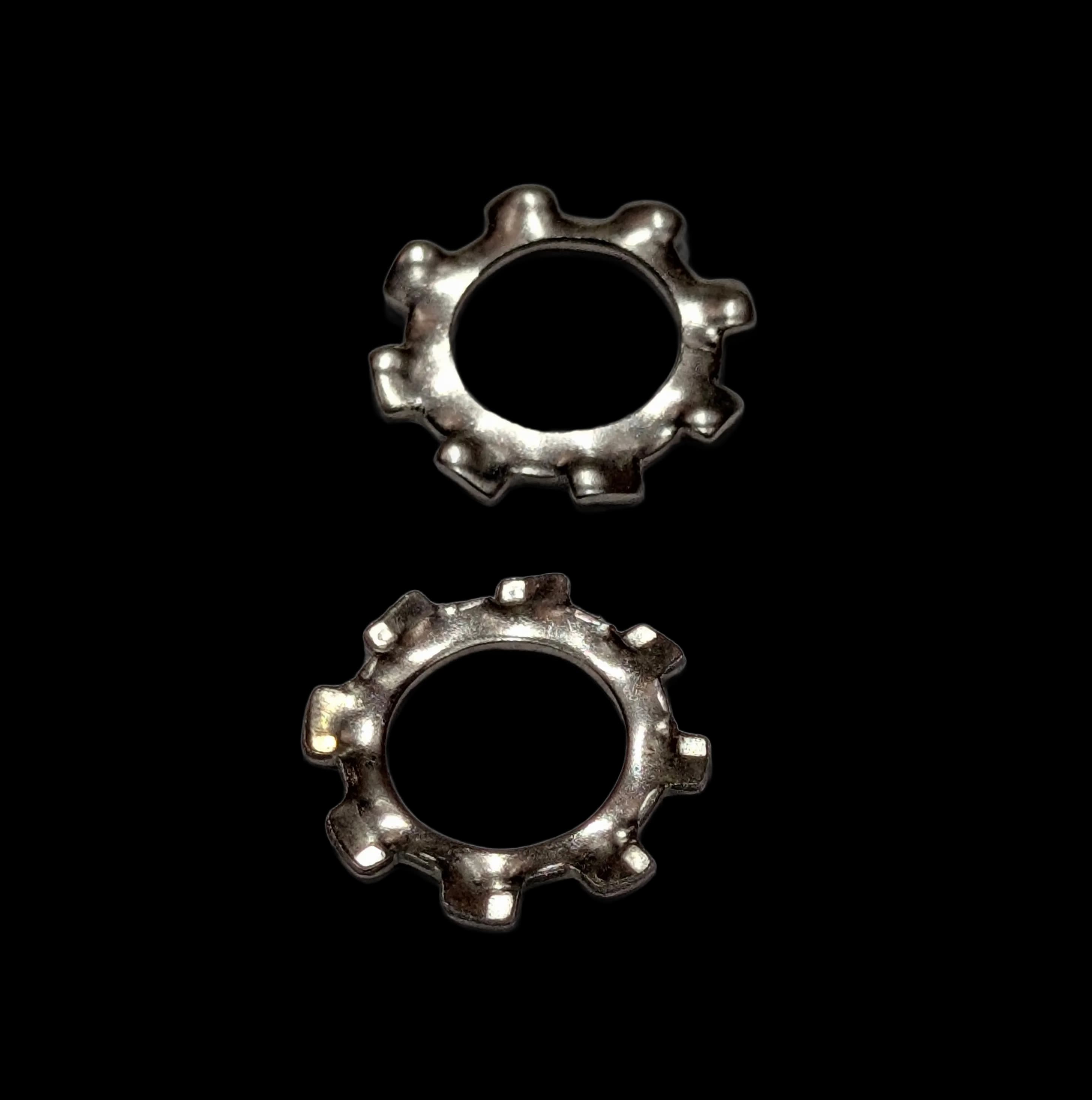

Star washers, widely known as tooth lock washers, are specialized locking components engineered to provide robust vibration resistance and secure electrical bonding in mechanical assemblies. Characterized by their twisted, serrated teeth, these washers are designed to physically bite into both the fastener head and the mating substrate. This biting action creates a mechanical barrier against vibration-induced rotation, maintaining the integrity of the joint even under dynamic loads. Beyond their mechanical locking capabilities, star washers are uniquely adept at piercing through surface coatings such as paint or anodization to establish reliable metal-to-metal contact, making them invaluable for electrical grounding.

Materials and Finishes

Star washers are manufactured from resilient materials capable of maintaining high spring force while allowing the teeth to bite effectively. Common materials include Spring Steel and Carbon steel, which are heat-treated to ensure the teeth remain rigid. Stainless Steel (grades A2 and A4) is frequently utilized for its corrosion resistance, while Brass offers excellent electrical conductivity for grounding applications.

To further protect against environmental degradation, these washers are available in an extensive range of finishes. Options include Self-Color (Plain), Zinc Plated, Black Oxide, and Hot-Dip Galvanized for industrial environments. For specialized aesthetic or conductive requirements, finishes such as Nickel Plating, Copper Plating, Brass Plating, Chrome Plating, Cadmium Plating, and advanced Zinc-Aluminium Flake Coating are also available.

Technical Specifications and Standards

The design and performance of star washers are strictly regulated by international standards, ensuring consistent biting action and anti-rotation characteristics. They are produced in various forms to suit different fastener configurations:

• Form A (External): Features external teeth for maximum contact area, ideal for standard flat bearing surfaces.
• Form J (Internal): Features internal teeth, typically used with smaller fastener heads or to hide the teeth for a cleaner appearance.
• Form V (Conical): Designed specifically for use with countersunk head screws.

Key manufacturing standards include:

• DIN 6797: Standard for toothed lock washers.
• DIN 6798: Standard for serrated lock washers, offering a more aggressive tooth profile.
• ISO 10673: Standard detailing plain washers for screw and washer assemblies, which often integrates closely with locking washer applications.

These standards guarantee essential Mechanical Properties, primarily Spring Tension, Biting Action, Anti-Rotation, and High Spring Force.

Common Applications and Industries

Star washers are primarily deployed in environments where vibration loosening poses a critical risk. They are a staple in the automotive and aerospace industries for securing components subject to continuous engine or structural vibrations. In electronics, telecommunications, and power distribution, their ability to bite through coatings makes them the preferred choice for establishing secure electrical grounding paths. Additionally, they are widely used in general manufacturing for joining relatively soft substrates like aluminum or plastics, where their localized biting prevents joint failure.

Conclusion

Combining high spring force with aggressive anti-rotation properties, star washers provide a dual-purpose solution for mechanical locking and electrical continuity. With a comprehensive range of materials, forms, and finishes governed by rigorous DIN standards, they remain an essential fastener for securing dynamic and electrically sensitive assemblies.
