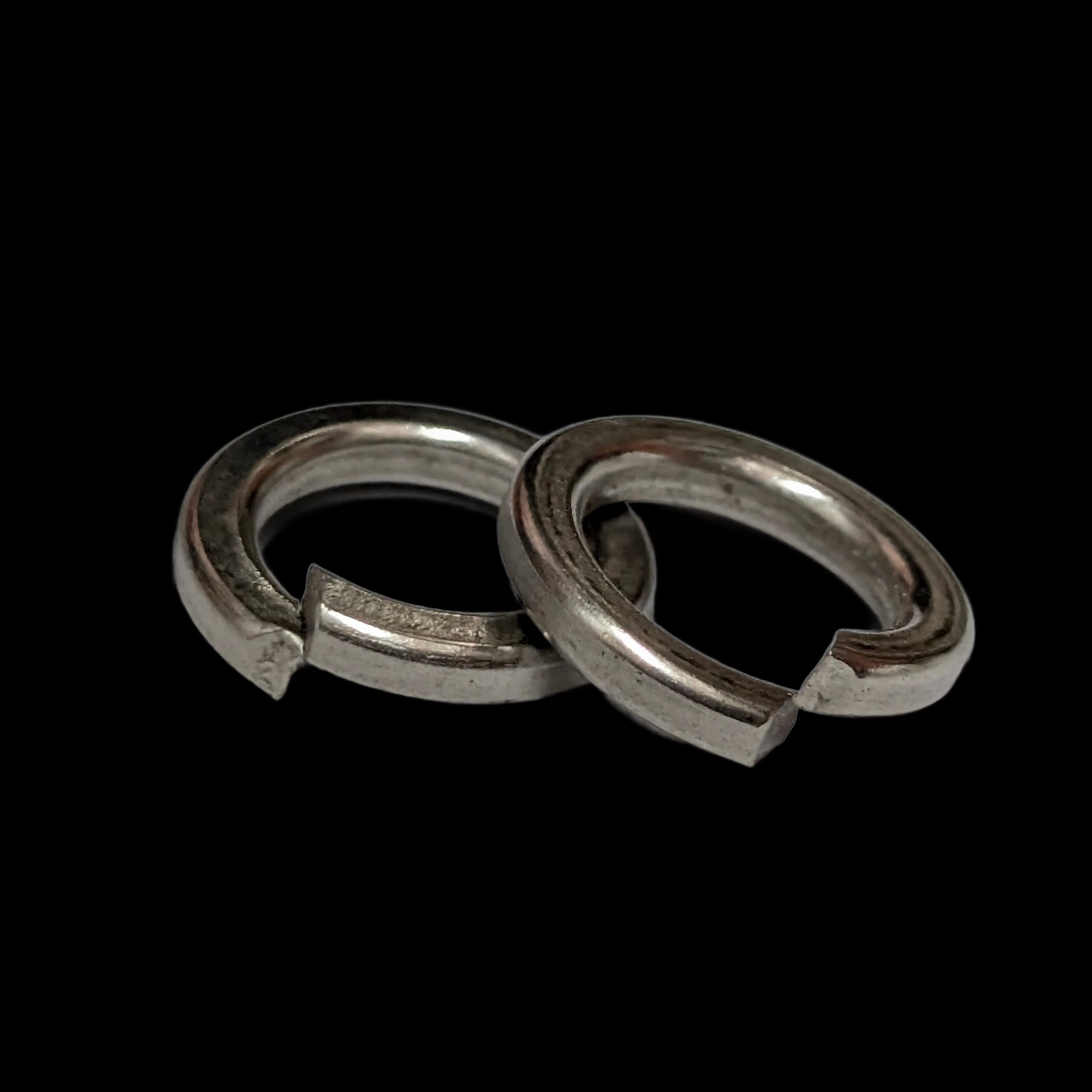

Spring Washers

Spring Washers: Maintaining Bolt Preload

Spring washers are fundamental mechanical components designed to provide continuous clamping force and axial tension in bolted assemblies. Forged from high-strength resilient materials, their geometric deformation acts as a spring, absorbing shock, damping vibration, and compensating for thermal expansion or minor joint settlement. By actively pushing back against the fastener head and the mating surface, spring washers resist the vibrational forces that lead to self-unscrewing, thereby maintaining the critical joint preload. They are heavily utilized in aerospace, machinery, and automotive applications where dynamic forces constantly challenge fastener stability.

Materials and Finishes

To maintain high elasticity and resist permanent deformation under load, spring washers are manufactured from robust materials:

• Materials: Standard production utilizes high-carbon Spring Steel. For environments requiring corrosion resistance, Stainless Steel in A2 and A4 grades is widely used. Specialty Alloys can be specified for extreme temperatures or highly corrosive conditions.
• Finishes: A vast array of surface treatments is available, including Plain or Self-Colour (uncoated), Zinc Plated, Hot-Dip Galvanized, Black Oxide, and Phosphated finishes. For specialized applications, Nickel Plating and Delta Seal are utilized for premium corrosion protection.

Technical Specifications and Standards

Spring washers come in various design characteristics, such as Helical, Split, Wave, and Curved profiles, each offering different tensioning properties. Their performance is defined by strict standards and mechanical properties:

• Standards: Governed by established specifications like DIN 127 (helical split rings), DIN 128 (curved/wave split), DIN 137 (wave/curved washers), DIN 7980 (for socket head cap screws), and DIN 6796 (heavy-duty conical spring washers).
• Mechanical Properties: They must exhibit High Tensile Strength and High Elasticity to function effectively. A typical Hardness of 42–47 HRC ensures they can handle the required Load-Bearing Capacity while providing superior Fatigue Resistance.

Common Applications and Industries

Spring washers are essential in mitigating dynamic loads and thermal changes across numerous sectors:

• Heavy Industrial Machinery: Preventing fastener loosening in vibrating equipment, crushers, and manufacturing presses.
• Automotive Suspensions: Maintaining tight connections in undercarriage components subjected to continuous road shock.
• Aerospace: Managing thermal expansion and contraction cycles in extreme atmospheric conditions.
• Electrical Assemblies: Utilizing wave or curved variants to maintain tension on contacts without damaging soft housings.

Conclusion

By leveraging geometric compression and high-strength materials, spring washers are a reliable and cost-effective method for absorbing shock and maintaining tension in bolted joints. Whether compensating for thermal expansion or resisting dynamic vibrations, they play a vital role in extending the lifespan and safety of mechanical assemblies.
