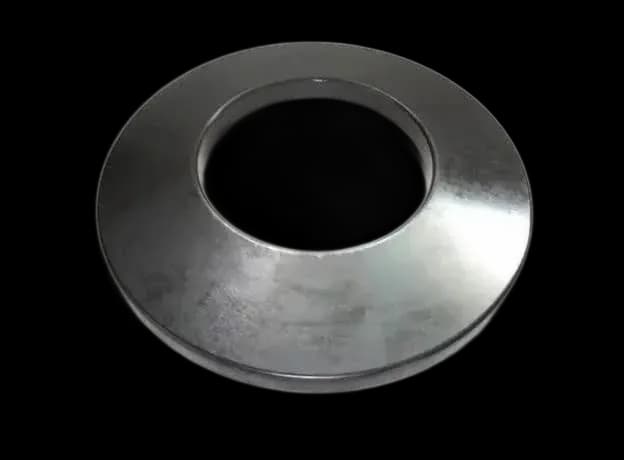

Disc Washers

Introduction to Disc Washers

Disc washers, also commonly referred to as conical spring washers or Belleville washers, are specialized mechanical components engineered to provide extraordinarily high axial force and dynamic tensioning within a remarkably compact spatial footprint. Characterized by their unique truncated cone geometry, these washers deflect predictably under heavy loads. This deflection effectively compensates for thermal expansion, contraction, and gasket creep, thereby maintaining critical bolt preload in demanding assemblies. Whether deployed individually or stacked in series and parallel configurations to customize load capacity, disc washers are an essential element in advanced mechanical engineering.

Materials and Finishes

Because they must operate under immense stress and frequent cyclic loading, disc washers are manufactured from metals that exhibit exceptional elastic and fatigue properties. The primary materials utilized are high-carbon Spring Steel and corrosion-resistant Stainless Steel. For applications demanding the highest levels of environmental resistance, they are available in premium stainless steel grades A2 and A4.

To protect these critical components from wear and corrosion, a wide variety of specialized surface finishes are applied. Available finishes include Phosphated (Zinc Phosphate & Oil) and Browning (Oxidized) for standard industrial protection. For more aggressive environments, options such as Mechanical Zinc Plating, Electroless Nickel Plating, Delta Seal, and advanced Zinc-Aluminum Flake coatings are utilized to maximize longevity without compromising the spring's mechanical integrity.

Technical Specifications and Standards

The performance of disc washers is defined by their strict adherence to calculated mechanical properties. They are designed to deliver massive Axial Tension, superior Vibration Damping, and excellent Fatigue Resistance, often achieving a material Hardness of 58 HRC to prevent deformation under peak loads.

To ensure predictable load-deflection characteristics, these components are manufactured in strict compliance with international engineering standards. Precision disc springs conform to DIN EN 16983 (which superseded the older DIN 2093 standard), ensuring reliable performance in high-cycle fatigue applications. Additionally, heavy-duty conical spring washers intended specifically for static bolted connections are manufactured according to DIN 6796.

Common Applications and Industries

The unique ability to maintain tension under fluctuating conditions makes disc washers vital across heavy industry and precision engineering alike. Their primary uses include managing dynamic loads in heavy machinery and providing high preload in critical static bolted joints. They are frequently found in automotive transmissions, industrial clutches, and braking systems where vibration damping is essential. Furthermore, they are heavily relied upon in power generation, petrochemical pipeline flanges, and precision pressure regulators to compensate for thermal cycling.

Conclusion

Disc washers represent a highly efficient solution for maintaining bolted joint integrity under extreme mechanical and thermal stress. By leveraging their unique conical geometry and high-grade spring materials, these components provide unparalleled axial tension and vibration resistance. Compliant with rigorous standards like DIN EN 16983 and DIN 6796, disc washers remain a critical component in safeguarding the reliability and safety of advanced industrial assemblies.
