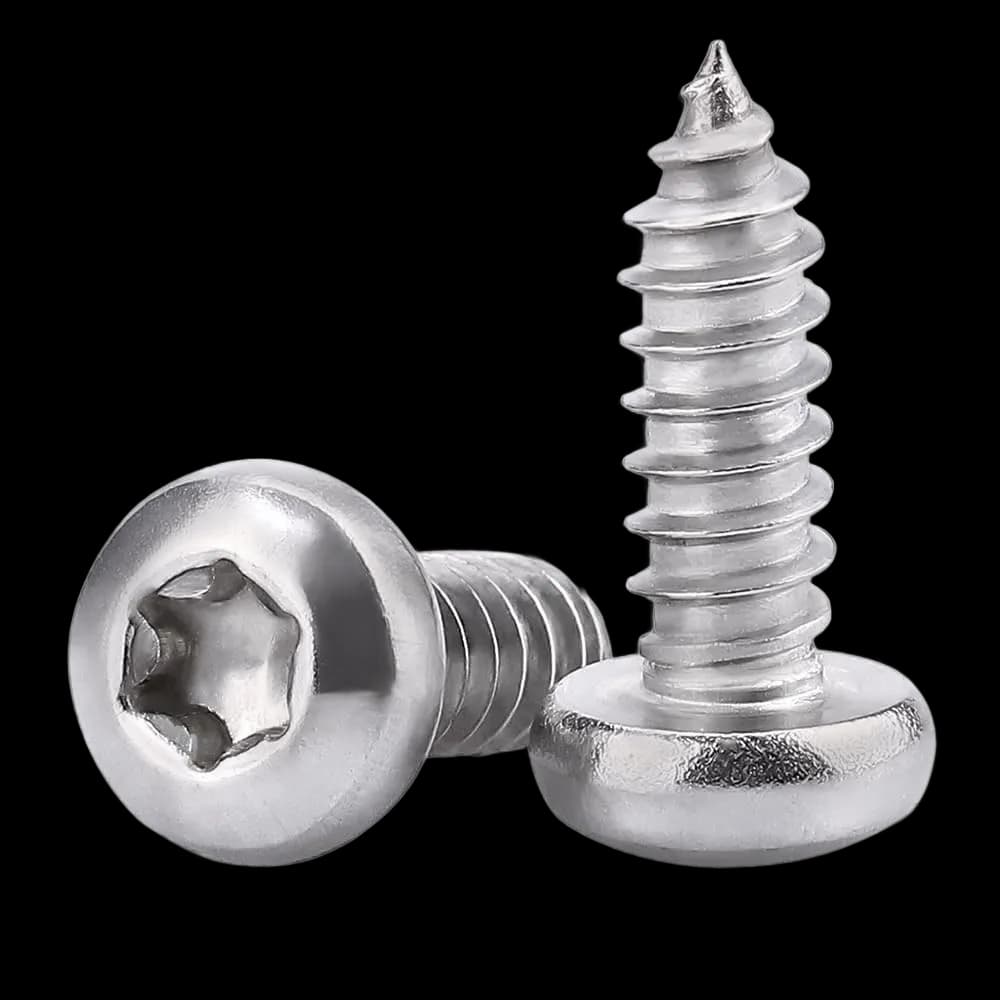

Pan Head Torx Self-Tapping Screws

Introduction to Pan Head Torx Self-Tapping Screws

Pan Torx self-tapping screws are highly efficient fasteners engineered to combine a load-distributing pan head with a high-torque hexalobular (Torx) drive system. The Torx recess permits high-speed pneumatic or electric driving without degrading the recess geometry or causing cam-out, significantly reducing assembly line downtime. The flat bearing surface of the pan head ensures uniform compressive forces against the substrate, preserving material integrity. They are predominantly utilized for establishing secure connections in light-gauge metals, plastics, and composite materials.

Materials and Finishes

To meet a variety of environmental and strength requirements, these fasteners are manufactured from premium materials:

• Materials: Available in robust Carbon Steel and corrosion-resistant Stainless Steel.
• Grades: Stainless steel variants are offered in A2 and A4 grades, ensuring optimal performance in humid or marine environments.
• Finishes: Common surface treatments include Zinc Plated, Black Oxide, and Passivated finishes, which significantly improve the longevity and aesthetic appeal of the hardware.

Technical Specifications and Standards

These fasteners adhere strictly to international dimensional and performance standards, ensuring precision and reliability:

• Drive Types & Sizes: Featuring the hexalobular Torx drive in standard sizes T10, T15, T20, T25, and T30.
• Head Style: The low-profile Pan Head provides excellent clamping force.
• Thread Types: Offered in Type A, Type AB, and Type B threads, accommodating different sheet thicknesses and material densities.
• Standards: Manufactured in compliance with ISO 14585 for dimensional consistency, as well as ASTM C1002 and ASTM C1513, ensuring rigorous structural connection performance.

Common Applications and Industries

Due to their versatility and resistance to cam-out, Pan Head Torx Self-Tapping Screws are extensively deployed across multiple sectors:

• Automotive Assembly: Frequently used in dashboard assembly, trim attachment, and non-structural chassis components.
• Appliance Manufacturing: Ideal for securing thermoplastic component housings and metal chassis parts.
• General Industrial Fabrication: Essential for sheet metal enclosures and light structural framing where high-torque fastening is required.

Conclusion

Pan Head Torx Self-Tapping Screws represent a premium fastening solution for modern manufacturing. By blending the superior torque transmission of a Torx drive with the broad bearing surface of a pan head, these fasteners ensure durable, vibration-resistant assemblies across a vast array of industrial applications.
