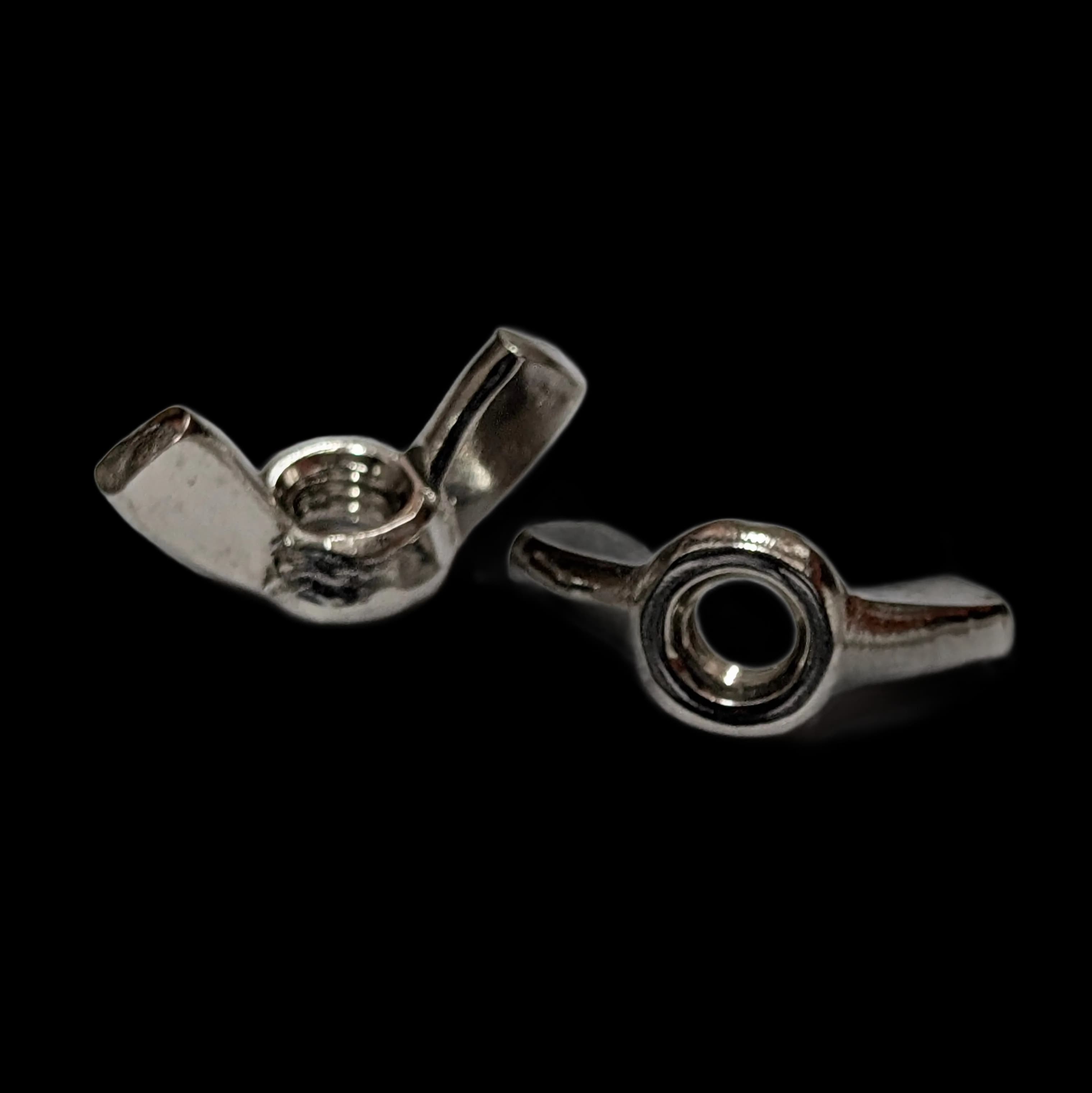

Wing Nuts

Rapid Adjustments with Maximum Leverage

Wing nuts, commonly referred to as butterfly nuts, are specialized fasteners engineered specifically for rapid, manual assembly. They are immediately recognizable by their two prominent, opposing radial tabs or "wings." These wings provide significant leverage, allowing users to achieve substantial clamping force through simple hand torquing, entirely eliminating the need for wrenches or specialized tools.

Produced primarily through cold-forging or die-casting processes, wing nuts are designed to facilitate frequent adjustments and swift disassembly. Their intuitive design makes them an indispensable component in hardware systems that prioritize speed and accessibility over permanent, structural lockdown.

Materials and Finishes

Wing nuts are available in a diverse array of materials to suit everything from consumer hardware to corrosive industrial environments. Metallic options include traditional Steel, robust Malleable Cast Iron, highly corrosion-resistant Stainless Steel, and Brass. For non-conductive or lightweight requirements, Nylon and Plastic variants are also widely specified. When stainless steel is required, they are commonly available in premium A2 and A4 Grades.

To further protect against environmental degradation, metallic wing nuts can be coated in numerous finishes:

• Zinc Plated and Hot-Dip Galvanized for general rust prevention.
• Passivation to enhance stainless steel longevity.
• Nickel Plating, Chrome Plating, and Black Oxide for aesthetic and protective layers.
• Epoxy Coating and Teflon Coating for specialized chemical resistance.

The physical design of the wings can also be specified in different geometries, primarily the rounded German Form or the more rectangular American Style.

Technical Specifications and Standards

To ensure consistent dimensions and mechanical reliability, wing nuts are manufactured according to strict engineering standards. Dimensionally, they frequently comply with the globally recognized DIN 315 standard.

Material and mechanical performance specifications are governed by standards such as ASTM A563, ASTM F467, ASTM A194, ASTM A193, and ASTM F594. Wing nuts accommodate a massive spectrum of requirements with Thread Ranges spanning from M3 to M24. Supported Thread Types include ISO Metric, Unified National Coarse (UNC), Unified National Fine (UNF), UN (Fixed Pitch), BSW, and ACME.

Common Applications and Industries

Because wing nuts can be susceptible to loosening under severe dynamic loads, they are generally reserved for low-vibration environments. Their primary advantage lies in applications requiring frequent, tool-free access:

• HVAC Systems: Fastening access panels on ductwork and air handling units.
• Manufacturing & Carpentry: Acting as temporary clamping mechanisms on woodworking jigs and adjustable fixtures.
• Consumer Hardware: Securing components on outdoor furniture, tripods, and marine boat covers.
• Electrical Enclosures: Providing quick entry to non-critical service boxes.

Conclusion

Wing nuts are the ultimate fastening solution for rapid, tool-less assembly. By combining leverage-enhancing wings with a vast array of materials, finishes, and strict compliance to standards like DIN 315 and ASTM A563, they deliver reliable, adjustable clamping power for countless low-vibration applications.
