Weld Nuts

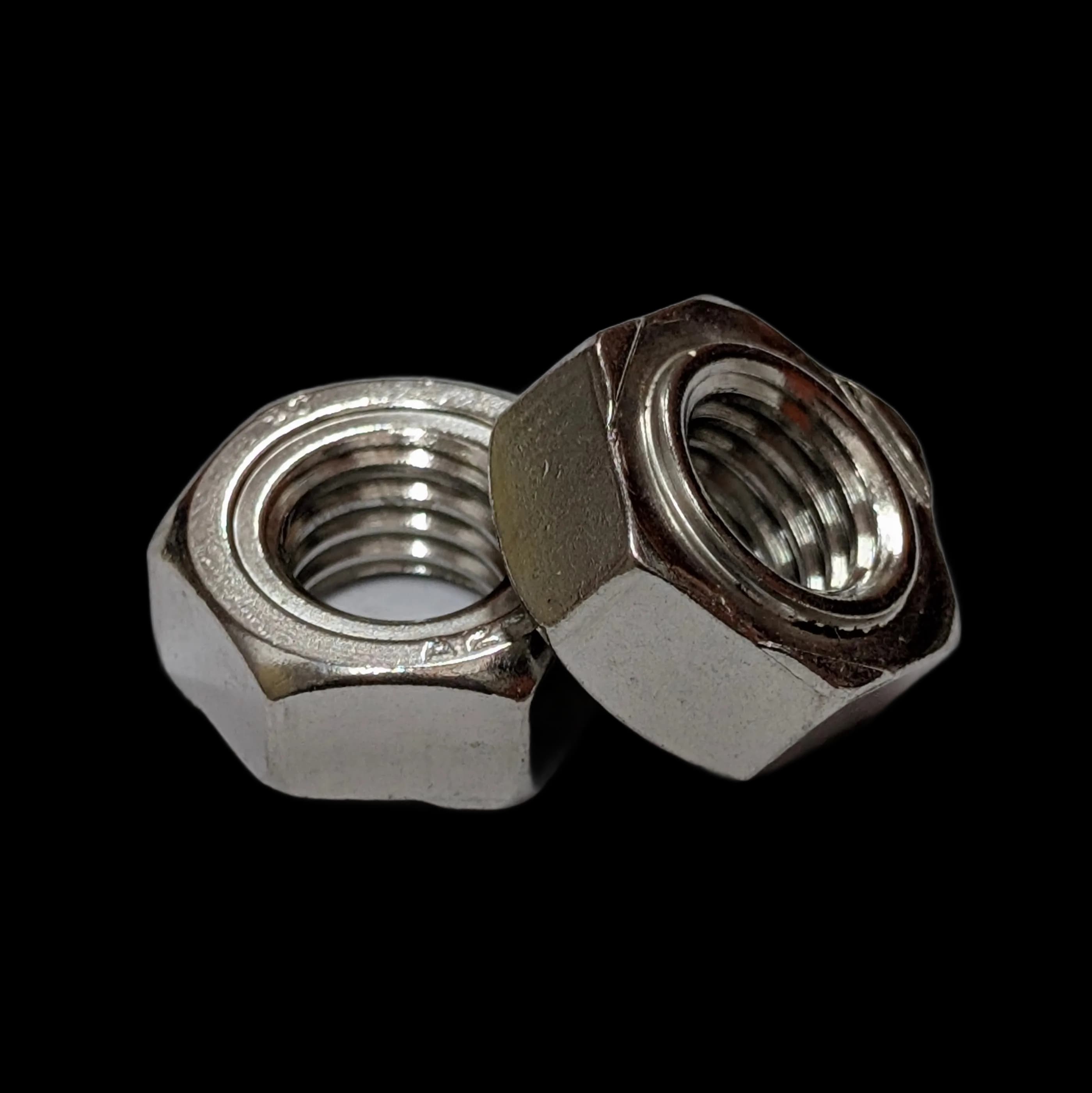

Introduction to Weld Nuts

Weld nuts are specialized permanent fasteners engineered to be fused directly onto metal substrates—typically sheet metal—using projection or spot welding. By creating an integral threaded anchor point, they provide a robust internal thread in applications where access to the back of the panel is restricted or impossible. These captive fasteners feature small raised weld projections (nibs) designed to melt and concentrate the electrical welding current, forming a high-strength, permanent bond that acts as a direct extension of the base material.

Materials and Finishes

To ensure excellent weldability and structural integrity, weld nuts are primarily manufactured from Low-carbon steel (max 0.25% C), which allows for clean, spatter-free fusion with the base metal. For applications requiring enhanced corrosion resistance, they are available in Stainless Steel (including A2 and A4 grades) and Alloy Steel for heavy-duty, high-tensile environments. Because surface coatings can interfere with the electrical current required for welding, they are typically supplied in Plain or Uncoated finishes, or with a Light Oil to prevent flash rust. Stainless steel variants may undergo passivation.

Technical Specifications and Standards

Weld nuts must adhere to strict dimensional and performance standards to ensure precise alignment and reliable welding. Key international standards include DIN 928 (square weld nuts), DIN 929 (hexagon weld nuts), DIN 977, ISO 21670, ASTM A193, ASTM A194, and ASTM A563. They are available across a range of thread types, including Metric, Unified National Coarse (UNC), and Unified National Fine (UNF). Once properly installed, they offer exceptional mechanical properties, boasting extreme vibration resistance, heavy load capacity, and high torque resistance, effectively preventing rotation when the mating bolt is tightened.

Common Applications and Industries

Due to their ability to provide a secure thread in blind applications (one-sided access), weld nuts are a cornerstone of sheet metal fabrication. They are heavily utilized in the automotive industry for chassis manufacturing, securing seat belts, and engine mounts. They are also prevalent in heavy industrial machinery, white goods manufacturing, HVAC equipment, and steel furniture production. Essentially, any application utilizing thin-gauge sheet metal that requires a permanent, high-strength threaded connection will rely on weld nuts.

Conclusion

Weld nuts are an indispensable component in modern manufacturing and sheet metal assembly. By combining the speed of projection welding with the strength of a permanent threaded insert, they solve complex access issues and deliver a reliable, anti-rotation fastening solution capable of withstanding extreme industrial demands.
