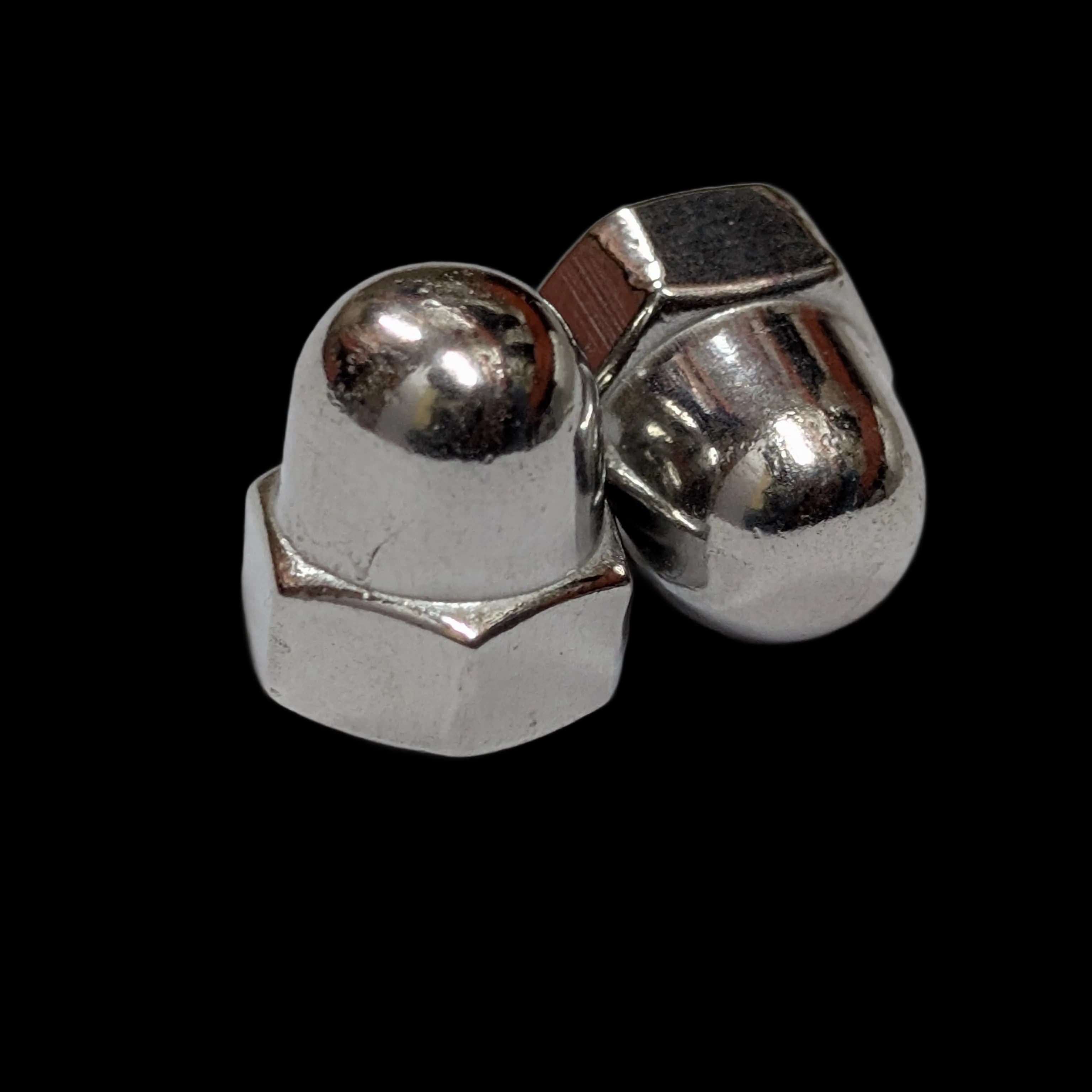

Dome Nuts

Introduction

Dome nuts, commonly referred to as acorn nuts or cap nuts, are hex-driven fasteners featuring a distinctive enclosed, domed crown that caps external male threads. While they are typically not intended for high-stress structural loads, the closed dome serves a critical dual purpose: it acts as a protective barrier to prevent thread damage from environmental contaminants and moisture, thereby reducing corrosion, and it mitigates injury risks by covering exposed, sharp bolt ends. Their smooth, finished appearance makes them an ideal choice where both aesthetics and safety are paramount.

Materials and Finishes

These fasteners are fabricated from a broad spectrum of materials to suit both decorative and functional requirements. Common materials include Carbon Steel and Stainless Steel, with specific property classes like A2-50 and A4-70, utilizing grades 304 and 316 for superior rust resistance. Other material options include Brass, Nylon, and Plastic for lightweight or non-conductive applications, as well as high-performance alloys like Inconel and Monel for extreme environments.

To complement their application and enhance their visual appeal, dome nuts are available in an extensive range of finishes. Options include Nickel Plating, Chrome Plating, Zinc Plated, Black Zinc, and Black Oxide. For specific industrial needs, PTFE Coating, Natural, and Polished finishes are also offered, ensuring the fastener seamlessly integrates into the final assembly while maintaining its protective qualities.

Technical Specifications and Standards

The manufacturing of dome nuts is governed by several precise dimensional and material standards to ensure consistency and reliability. Notable dimensional standards include DIN 1587, which defines the high-crown "classic acorn" shape, and DIN 917, which specifies a low-profile, short dome nut for space-constrained applications. Material and mechanical requirements frequently align with ASTM F594, ASTM A194, ASTM A193, ASTM A307, and ASTM A563.

Dome nuts are available in varied design variations, primarily Low Crown, High Crown, and Self-locking styles, catering to different thread coverage needs and vibration resistances. Compatible thread types include Unified National Coarse (UNC), Unified National Fine (UNF), UN (Fixed Pitch), ISO Metric, BSW, and ACME, making them highly adaptable to existing male threaded hardware.

Common Applications and Industries

Thanks to their protective and aesthetic qualities, dome nuts are heavily utilized across a variety of sectors. In the automotive industry, they are frequently found on exterior finishing and engine bays where exposed threads could cause snagging or succumb to rust. Marine hardware relies on stainless steel dome nuts to protect joints from harsh saltwater corrosion. Furthermore, they are a staple in architectural cabinetry, playground equipment, and consumer goods, where a smooth, blind nut profile is necessary for both safety and visual completion.
