T-Bolts

Introduction to T-Bolts

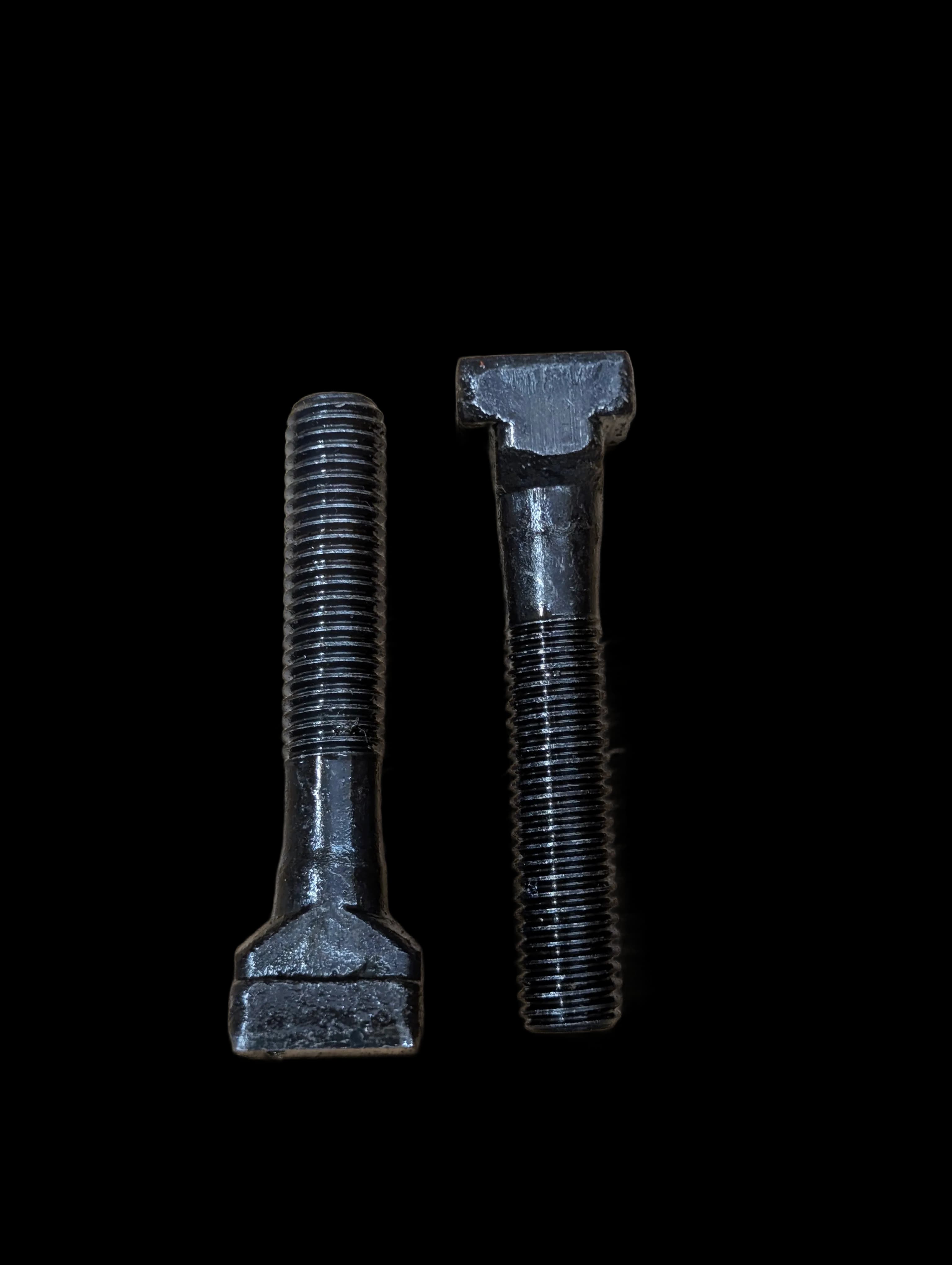

T-bolts are highly specialized, high-strength fastening elements recognized by their distinctive transverse head. This unique head is purposefully designed to drop into and interlock with standardized T-slot aluminum extrusions or machine tables. By inserting the bolt and rotating it to lock within the slot cavity, T-bolts provide an incredibly secure, adjustable, and vibration-resistant anchor point capable of withstanding substantial tensile and shear loads. Their primary engineering purpose is to facilitate modular, temporary, or permanent fixturing without the need to access the ends of a slot.

Materials and Finishes

Given their role in heavy-duty clamping and structural framing, T-bolts are manufactured from robust metals designed to handle significant stress. The primary materials include Carbon Steel, Alloy Steel, and Stainless Steel. They are available in various high-tensile property classes and grades, such as 8.8, 10.9, 304, 316, A2, and A4. To mitigate corrosion and match the aesthetics of machine tables or extrusions, T-bolts can be finished with a Black Oxide coating, Zinc Plating, or left Plain.

Technical Specifications and Standards

T-bolts are strictly governed by multiple standards depending on their exact profile and intended application. Prominent specifications include DIN 787 (for machine table T-slots), DIN 186 (T-head bolts with a square neck), DIN 261, DIN 650, and ISO 299. Their mechanical properties are further dictated by fundamental fastener standards like ISO 898-1 and ISO 3506.

These bolts are engineered for extreme load-bearing, offering exceptional Tensile Strengths of 700 MPa, 1040 MPa, and up to 1220 MPa. They are available in a broad spectrum of metric and imperial Thread Types, commonly including M6, M8, M10, M12, M16, 3/8-16, and 1/2-13.

Common Applications and Industries

T-bolts are synonymous with versatility and modularity. They are critical components in the assembly of CNC machinery workholding setups, allowing operators to quickly and securely clamp complex workpieces to milled tables. Beyond machining, they are the backbone of modular automation framing, robotic cell construction, and even large-scale solar panel mounting structures where rapid, secure adjustability is paramount.

Conclusion

Offering unmatched flexibility and high tensile strength, T-bolts are indispensable for modern fixturing and modular construction. Whether locking into a CNC table under DIN 787 specifications or securing an aluminum framing joint, they provide a reliable, vibration-resistant fastening solution that accelerates assembly and maximizes structural integrity.
