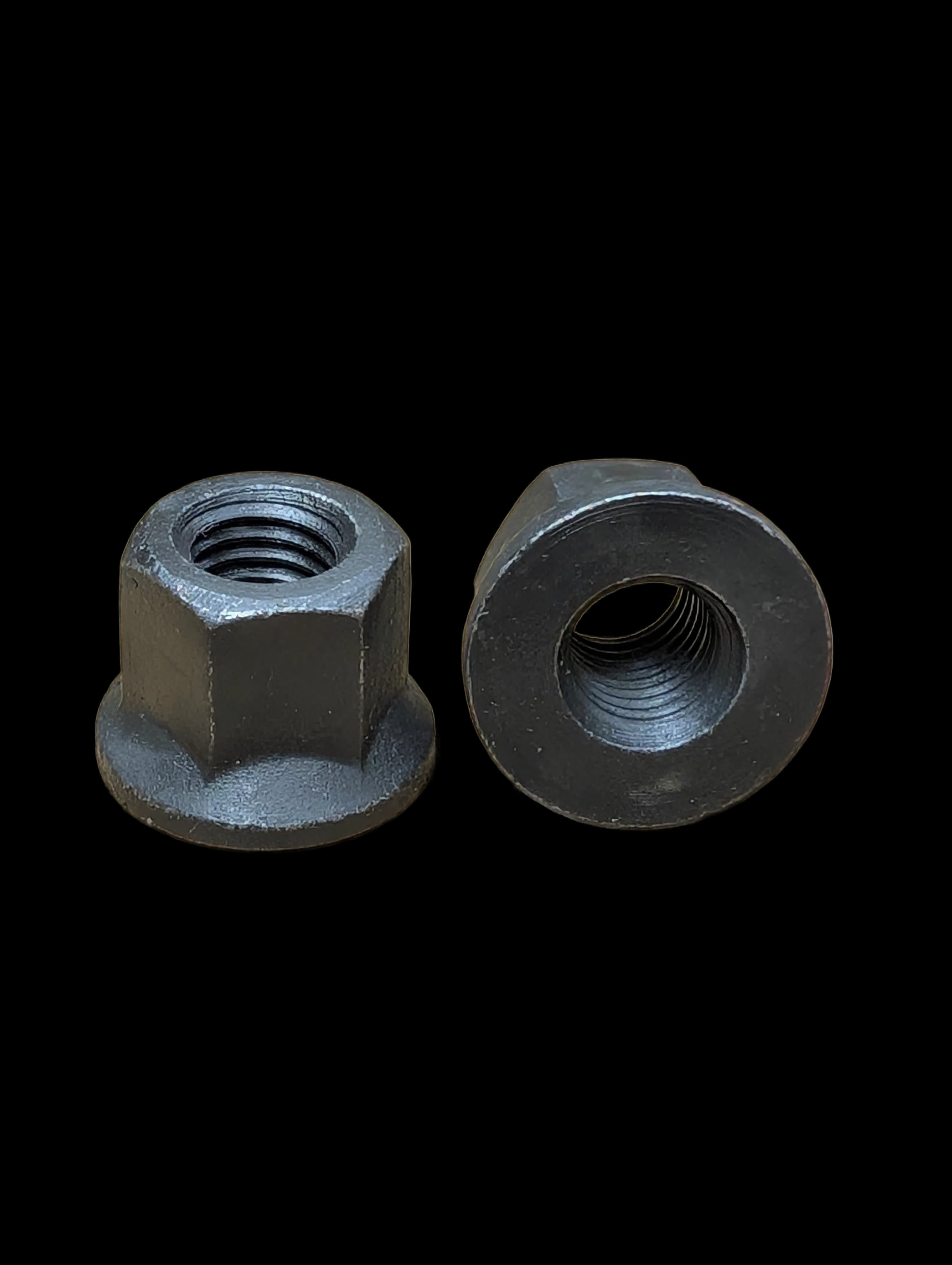

Collar Nuts

Introduction to Collar Nuts

Collar nuts, also known as flange nuts, are highly specialized fasteners that integrate a traditional threaded hexagonal body with an enlarged, circular flanged base. This unified design allows the nut to function simultaneously as a fastening mechanism and a load-distributing washer. By increasing the bearing surface area, collar nuts significantly minimize localized compressive stress on the mating material, preventing damage to the workpiece. Furthermore, this augmented surface contact creates exceptional resistance to vibrational loosening, making them vital in environments subjected to dynamic loading and continuous mechanical stress.

Materials and Finishes

Given their application in heavy-duty and high-stress environments, collar nuts are forged from premium, high-strength materials including Carbon Steel, Alloy Steel, Stainless Steel, and Specialty Alloys like Inconel, Monel, Hastelloy, and Duplex steel. They are available across a wide spectrum of performance grades, spanning 8, 10, 12, A2, A4, 304, 316, and 316L, ensuring adequate tensile strength for virtually any structural demand.

To protect against corrosion and reduce galling during high-torque installation, these nuts are typically supplied with robust finishes:

• Black Oxide: Provides mild corrosion resistance and minimizes light reflection, often used in machine tooling.
• Zinc Plated: Offers a strong sacrificial barrier against rust for standard industrial applications.

Technical Specifications and Standards

Collar nuts are precision-engineered according to strict dimensional and performance standards:

• DIN 6331: Specifies hexagon nuts with a collar featuring a height of 1.5 times the thread diameter. These high-profile nuts provide extended thread engagement and are optimized for frequent clamping and unclamping.
• DIN 6923 / ISO 1661: The definitive standards for standard-height hexagon flange nuts, dictating flange dimensions and structural load capacities.
• ISO 898-2: Specifies the mechanical properties of nuts with specified proof load values.

These fasteners are available in a broad range of metric and imperial Thread Types, accommodating common sizes such as M6, M8, M10, M12, M16, as well as 3/8-16 and 1/2-13.

Common Applications and Industries

The built-in load distribution and vibration resistance of collar nuts make them ubiquitous in the automotive industry, particularly in chassis assembly and engine mounts. In structural steelwork, they provide reliable, high-strength clamping without the need for cumbersome separate washers. Furthermore, collar nuts adhering to the tall-profile DIN 6331 standard are heavily utilized in heavy mechanical engineering and manufacturing, specifically serving as primary fasteners in workholding setups, jigs, and machine tool fixtures where parts must be frequently and securely clamped.

Conclusion

By consolidating a nut and washer into a single, high-strength component, collar nuts deliver superior load distribution and vibrational resistance. Whether specified to DIN 6923 for general structural framing or DIN 6331 for heavy-duty machine clamping, these versatile fasteners ensure secure, reliable joints in the most demanding engineering applications.
