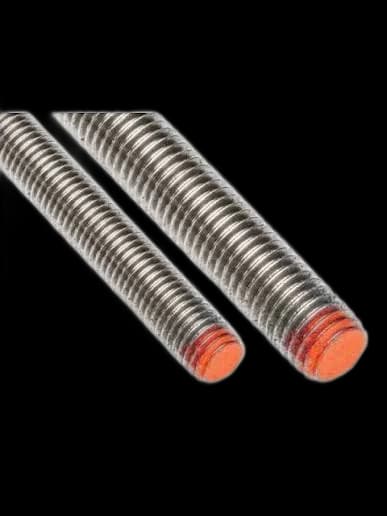

Threaded Rods

Threaded rods and studs are essential, continuous-thread fasteners engineered to provide adjustable suspension and high-tension clamping. Fully threaded rods (often referred to as all-thread) handle significant tensile loads over long spans, while stud bolts—which may feature a smooth unthreaded shank in the center—aid in precise alignment and uniform stress distribution across high-pressure joints.

Materials and Finishes

These high-strength fasteners are manufactured from robust metals, including Carbon Steel, Alloy Steel, and Stainless Steel. To prevent oxidation and enhance longevity in aggressive environments, they can be treated with various protective finishes:

• Zinc Plated, Hot-Dip Galvanized, and Zinc Flake (or Zinc Flake Coating) for general outdoor and structural use.
• Phosphate & Oil and Passivated finishes for industrial and high-temperature environments.
• Plain finish when environmental factors are tightly controlled or post-assembly coating is required.

Technical Specifications and Standards

Threaded rods and studs adhere to rigorous material and dimensional standards, ensuring reliable performance under high tension.

• Standards: DIN 975 and DIN 976 specify general dimensions for metric threaded rods. For stud bolts, DIN 835 and DIN 939 are common. In North America, ASTM A307 covers general utility carbon steel, whereas ASTM A193, ASTM A320, and ASTM A449 dictate high-tensile, high-temperature, and low-temperature performance requirements.
• Mechanical Grades: Available in standard metric classes such as 4.6, 4.8, and 5.6, high-tensile classes 8.8, 10.9, and 12.9, and stainless options A2 and A4.
• Tensile Strengths: Engineered to support substantial loads, with ultimate tensile strengths rated at 400 MPa, 800 MPa, 1040 MPa, and up to 1220 MPa.
• Thread Types and Coverage: Offered with Straight (Parallel) or Tapered threads, in both Coarse and Fine pitches. Thread coverages include Fully Threaded (Rods) and Unequal Thread Lengths (Studs).

Common Applications and Industries

Because of their adjustable length and high structural capacity, threaded rods and studs are critical across multiple heavy industries:

• Construction and Infrastructure: Suspension of HVAC systems, plumbing, and anchoring structural foundations.
• Petrochemical and Energy: Flange connections, pressure vessels, and pipelines where high-strength stud bolts (e.g., ASTM A193) are mandatory.
• Automotive and Heavy Mechanics: Engine cylinder assemblies and heavy mechanical joints requiring reliable preload control.

In conclusion, threaded rods and stud bolts offer unmatched versatility and high-tension reliability, making them a cornerstone component for structural suspension and critical pressure-retaining assemblies.
