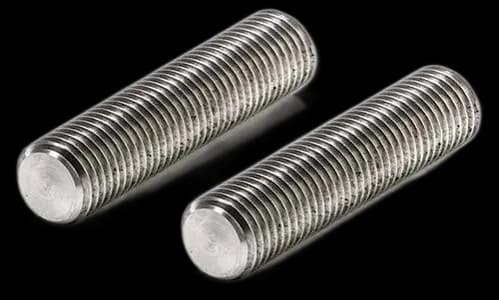

Studs

Introduction to Studs

Studs, encompassing both fully threaded rods and double-end stud bolts, are critical fastening components designed for applications requiring adjustable, continuous thread engagement, high-pressure clamping, or structural suspension. Fully threaded rods (all-thread) are headless fasteners that provide immense versatility, capable of handling significant tensile loads across their entire length. Conversely, stud bolts often feature a smooth, unthreaded shank in the center with threads on both ends; this central shank aids in precise alignment and ensures uniform stress distribution across specialized joints. These fasteners are indispensable for creating highly secure, high-tension connections in demanding mechanical and structural environments.

Materials and Finishes

To meet a vast array of mechanical demands, studs are manufactured from a diverse selection of high-performance materials, primarily Carbon Steel, Alloy Steel, and Stainless Steel. They are available in numerous strength classes and grades to guarantee structural reliability, including 4.6, 4.8, 5.6, 8.8, 10.9, 12.9, as well as corrosion-resistant A2 and A4 variants.

A comprehensive range of surface finishes is available to protect against environmental degradation:

• Plain (bare metal) for applications where subsequent coating or specific lubrication is applied.
• Zinc Plated and Hot-Dip Galvanized for excellent general corrosion resistance.
• Phosphate & Oil for robust protection in heavy mechanical environments.
• Passivated for enhanced longevity on stainless steel.
• Zinc Flake and Zinc Flake Coating for superior, high-performance protection in extreme conditions.

Technical Specifications and Standards

Studs are precisely engineered to meet exact dimensional tolerances and withstand extreme operational pressures.

• Thread Features: Available in varying Thread Coverages, including Fully Threaded (Rods) and Unequal Thread Lengths (Studs). The Thread Types encompass Straight (Parallel), Tapered, Coarse, and Fine configurations.
• Tensile Strengths: Capable of supporting massive loads with ratings spanning 400 MPa, 800 MPa, 1040 MPa, and up to 1220 MPa.
• Standards: Conforming to critical global specifications, including dimensional standards like DIN 976, DIN 835, DIN 975, and DIN 939, as well as stringent material and performance standards for high-temperature/pressure applications such as ASTM A320, ASTM A307, ASTM A193, and ASTM A449.

Common Applications and Industries

The robust design and adjustable nature of studs make them a foundational element across a multitude of heavy industries:

• Petrochemical and Oil & Gas: High-strength stud bolts (like ASTM A193) are critical for securing flange connections and pressure vessels operating under extreme temperatures and pressures.
• Construction and Infrastructure: Fully threaded rods are primarily utilized for anchoring structural foundations and suspending heavy commercial HVAC systems and plumbing networks.
• Automotive and Mechanical Engineering: Double-end studs are vital in engine cylinder assemblies and heavy mechanical joints requiring precise alignment and reliable preload control.

Conclusion

Whether providing the continuous adjustability of a fully threaded rod or the precise clamping force of a double-end stud, these fasteners are crucial to modern engineering. Their exceptional strength, diverse material options, and adherence to rigorous standards ensure the safety and integrity of everything from heavy industrial piping to commercial infrastructure.
