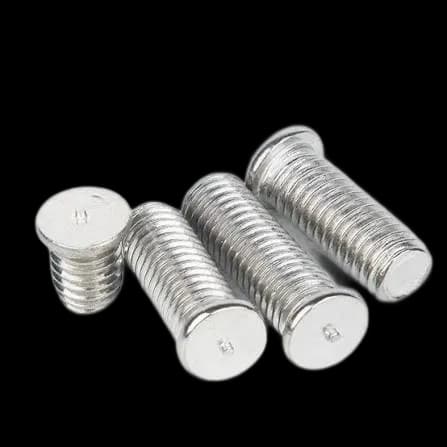

Weld Studs

Introduction to Weld Studs

Weld studs are specialized, unheaded or headless fasteners engineered specifically for permanent, high-strength attachment to metal substrates. Using advanced stud welding techniques—such as capacitor discharge (CD) or drawn arc welding—the stud is metallurgically fused to the base material. This process creates a full-cross-sectional weld that typically exceeds the tensile strength of both the stud and the base metal itself. The primary engineering advantage of weld studs is their ability to provide secure fastening without the need to drill, punch, or tap holes, thereby preserving the structural integrity and aesthetic finish of the reverse side of the workpiece.

Materials and Finishes

Because weld studs must perfectly fuse with a base material, they are manufactured from highly weldable metals:

• Low Carbon Steel: Excellent for general-purpose welding and fabrication.
• Stainless Steel: Common grades like 304, 316, and 302HQ offer superb corrosion resistance and aesthetic longevity.
• Aluminum: Utilized for lightweight applications requiring fast capacitor discharge welding.

Surface finishes are typically chosen to ensure optimal electrical conductivity and weld quality:

• Bright and Unplated finishes are standard to prevent weld contamination.
• Copper Plating is frequently used on carbon steel studs to improve conductivity and prevent flash rusting prior to welding.
• Zinc Plated, Nickel Plating, and Zinc Flake finishes are also available for post-weld environmental protection.

Technical Specifications and Standards

Weld studs are engineered to precise mechanical specifications to guarantee weld integrity and load capacity.

• Mechanical Properties: Typical tensile strengths are around 420 MPa, with yield strengths near 340 MPa, conforming to grades such as ASTM A108.
• Thread Profiles: Available fully or partially threaded in UNC, UNF, UN, and ISO Metric profiles.
• Welding Methods: Designed specifically for Capacitor Discharge (for thin sheet metal) or Drawn Arc (for heavy structural plates) welding.
• Standards: Manufacturing conforms to strict industry codes, including ISO 13918 and ISO 14555 for arc stud welding, as well as ASTM standards such as ASTM A496, ASTM A493, ASTM A29, ASTM A108, ASTM A276, and DIN 32501.

Common Applications and Industries

The ability to create strong, one-sided, leak-proof connections makes weld studs invaluable across diverse industries:

• Construction and Civil Engineering: Widely used as composite concrete shear connectors in bridge and high-rise construction to bind steel girders to concrete slabs.
• Automotive and Transportation: Critical for chassis integration, heat shield attachment, and securing wire routing without piercing the vehicle body.
• Metal Fabrication and Electronics: Used for attaching nameplates, control panels, and heavy electrical enclosures where the reverse side must remain unmarred and aesthetically perfect.

Conclusion

Weld studs represent a highly efficient and structurally superior fastening method for metalworking and construction. By eliminating the need for drilling and tapping, they save manufacturing time while providing exceptional resistance to vibration and shear forces. Whether reinforcing a skyscraper or securing an electrical panel, weld studs deliver permanent, high-strength fixation.
