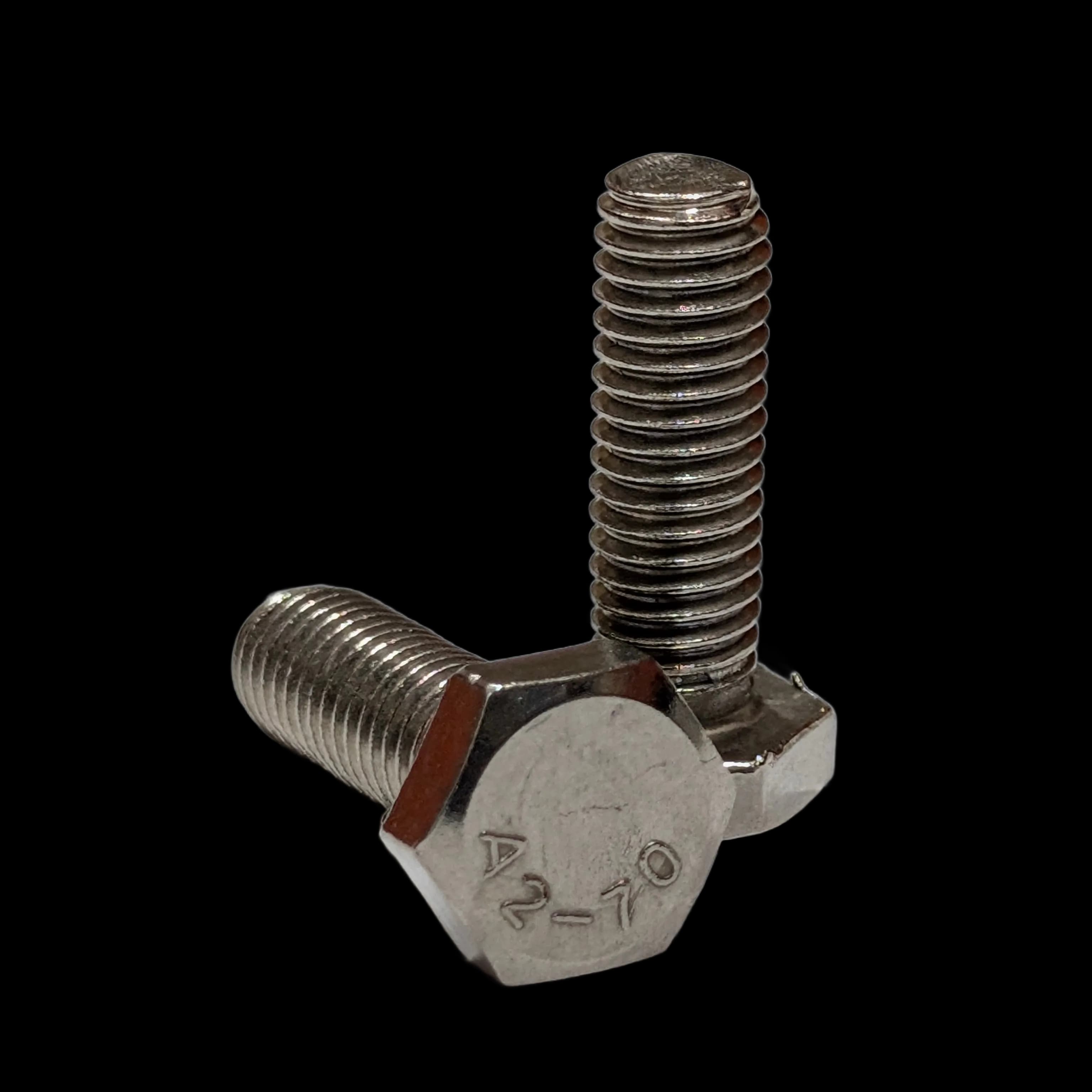

Hex Bolts and Screws

Introduction to Hex Bolts and Screws

Hex bolts and hex cap screws represent the cornerstone of heavy-duty structural joining across all facets of engineering and construction. Characterized by their signature six-sided head, these fasteners are explicitly engineered for efficient torque transfer using standard wrenches or sockets.

While functionally similar, they possess distinct manufacturing differences. Hex bolts feature wider dimensional tolerances, are typically hot-forged, and are primarily designed for through-hole connections where a nut is required to secure the joint. In contrast, hex cap screws are CNC machined to exact tolerances and feature a chamfered point and a washer face beneath the head. This washer face optimizes load distribution, minimizes surface deformation, and provides superior seating when driven into tapped blind holes. Both variations deliver exceptional tensile strength and vibration resistance, making them critical for robust structural integrity.

Materials and Finishes

Given their application in high-stress and critical load-bearing environments, hex bolts and screws are fabricated from premium, high-strength metals. They are primarily available in Carbon Steel, Alloy Steel, and Stainless Steel.

To protect against harsh environmental conditions, chemical exposure, and galvanic corrosion, these fasteners are treated with a comprehensive array of industrial finishes. Options include Zinc Plated, Hot-Dip Galvanized, Zinc Flake, Black Oxide, Passivation, and specialized Xylan coatings. They are meticulously graded to ensure predictable performance under load, available in standard structural grades including 4.6, 5.6, 8.8, 10.9, and ultra-high-strength 12.9, alongside stainless grades A2 and A4.

Technical Specifications and Standards

The mechanical integrity of hex bolts is defined by their rigorous technical specifications. They are engineered to achieve impressive yield strengths ranging from 240 MPa up to 1100 MPa, and corresponding ultimate tensile strengths from 400 MPa to a staggering 1220 MPa.

These fasteners are compatible with diverse threading requirements, offering both Coarse and Fine Pitch Thread configurations across UNC, UNF, ISO Metric, and specialized Lag Screw Threads. Their production is governed by a multitude of exacting international standards:

• ISO Standards: ISO 4014, ISO 8765, ISO 8676, and ISO 4017.
• DIN Standards: DIN 933, DIN 931, DIN 960, and DIN 961.
• ASTM Standards: ASTM A320, ASTM F593, ASTM F1554, ASTM A325, ASTM A193, ASTM A307, ASTM F3125, and ASTM A449.

Common Applications and Industries

The robust design and massive tensile capacities of hex bolts and cap screws make them the standard fastener for a vast array of heavy-duty applications. They are ubiquitous in structural steel erection, securing I-beams and girders in modern building and bridge construction.

Furthermore, they are standard components in Original Equipment Manufacturer (OEM) machinery and automotive engine assemblies, where high torque and vibration resistance are non-negotiable. From heavy plant equipment and mining machinery to fluid piping flanges and structural foundations, hex fasteners provide the essential holding power required for industrial infrastructure.

Conclusion

Hex bolts and hex cap screws are indispensable components for achieving unparalleled structural integrity in demanding engineering environments. With ultimate tensile strengths reaching 1220 MPa and a wide selection of grades (from 4.6 to 12.9), they offer robust, wrench-driven performance. Manufactured strictly to ISO, DIN, and ASTM specifications and available in various protective finishes, these hexagonal fasteners ensure reliable, high-torque joining for critical structural and mechanical applications.
