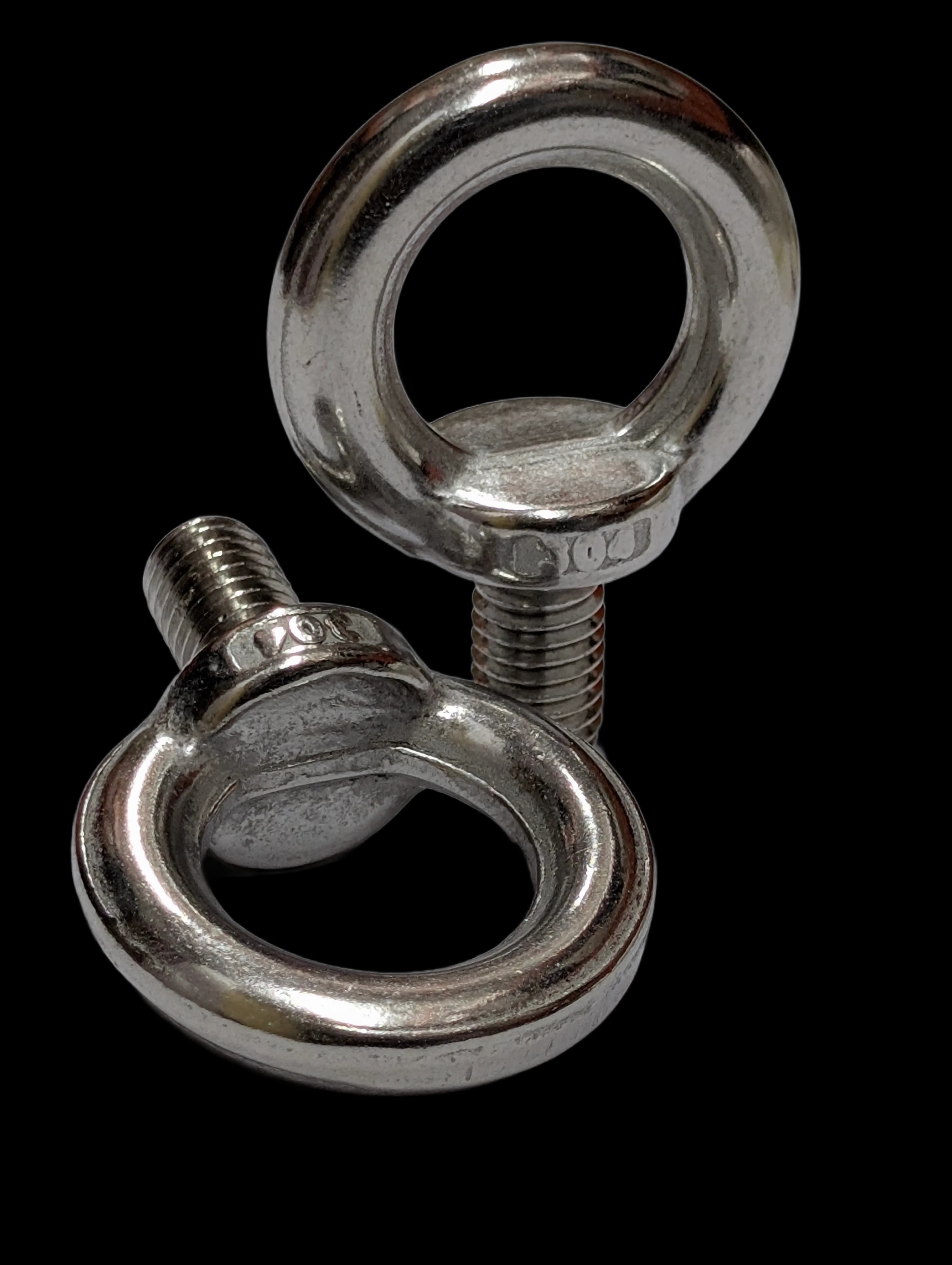

Eye Bolts

Introduction to Eye Bolts

Eye bolts are highly specialized threaded fasteners defined by their distinctive looped head, which serves as a secure attachment point for heavy-duty lifting, rigging, and anchoring operations. These fasteners are structurally critical components used to guide or secure ropes, cables, and shackles.

There are two primary configurations engineered for specific loading profiles. Shouldered eye bolts incorporate a robust flange directly beneath the eye; this design safely accommodates angular and lateral loads, reducing the bending stress on the shank. Conversely, plain eye bolts lack this shoulder and are strictly rated for in-line, vertical tension. Due to the high stakes involved in hoisting and rigging, these fasteners are rigorously tested and graded according to strict Working Load Limits (WLL) to ensure maximum safety and tensile yield.

Materials and Finishes

To withstand immense tensile forces and prevent catastrophic failure during lifting operations, eye bolts are manufactured using high-strength construction methods, primarily Forged or Formed-and-Bent techniques.

The core materials utilized are exceptionally durable, including Carbon Steel (C15), high-strength Alloy Steel, and corrosion-resistant Stainless Steel (A2, A4). To maintain structural integrity in harsh industrial, marine, or outdoor environments, they are fortified with an extensive range of heavy-duty finishes:

• Hot-Dip Galvanized and Zinc Plated: For superior rust prevention.
• Sherardizing and Phosphate: To provide durable, long-lasting surface protection.
• Black Oxide and PTFE: Offering specialized resistance to friction and chemical exposure.

They are available in stringent industrial grades, notably ASTM A193 Grade B7, alongside standard A2 and A4 stainless designations.

Technical Specifications and Standards

The technical geometry of an eye bolt revolves around its shank style—available as either a Shoulder or Plain Shank—and its threading. Thread types are versatile to accommodate various tapped holes and nuts, including ISO Metric, UNC, UNF, BSW, and specialized ACME threads.

Because they are categorized as load-rated lifting hardware, eye bolts must comply with uncompromising international safety standards:

• ASTM Specifications: ASTM A320, ASTM F541, ASTM A193, and ASTM A489.
• DIN Standards: DIN 444 and DIN 580.
• ISO Standards: ISO 3266.

Adherence to these standards guarantees that the eye bolts will perform safely up to their designated Working Load Limit, preventing deformation or breakage under heavy stress.

Common Applications and Industries

Eye bolts are foundational to operations requiring secure anchor points and heavy lifting capabilities. In heavy manufacturing and construction, shouldered eye bolts are essential for hoisting heavy machinery, motors, and structural steel components via cranes and hoists.

Plain shank eye bolts are frequently used for vertical tie-downs and suspension applications. Furthermore, stainless steel and galvanized variants are heavily utilized in the marine industry for securing mooring lines, rigging on ships, and architectural cable tensioning. They are also standard in theatrical rigging, infrastructure anchoring, and securing loads during heavy transport.

Conclusion

Eye bolts are critical safety components engineered for robust lifting, rigging, and anchoring. Whether utilizing a shouldered design for angular loads or a plain shank for vertical tension, these forged fasteners deliver uncompromising strength. Governed by exacting ASTM, DIN, and ISO standards and available in high-strength carbon, alloy, and stainless steels, eye bolts provide the certified load-rated reliability essential for the world's most demanding hoisting applications.
