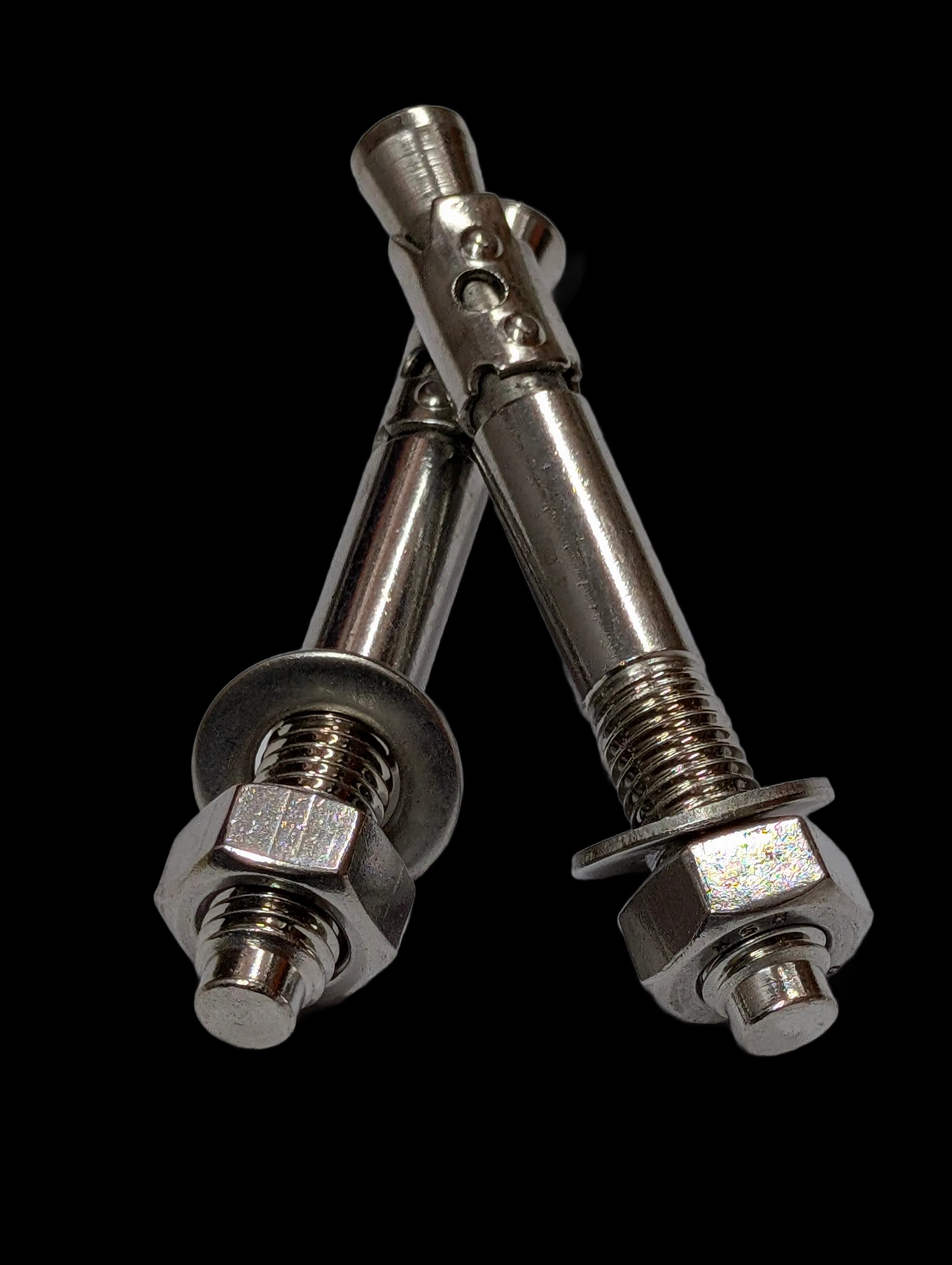

Concrete Anchors

Introduction to Concrete Anchors

Concrete anchors are robust, heavy-duty fastening systems engineered to attach structural components and equipment to brittle masonry substrates. Because concrete and brick cannot be easily threaded like metal or wood, these anchors utilize advanced mechanical expansion, thread-cutting, or chemical adhesive bonding to create a secure hold. Their primary engineering purpose is to withstand extreme shear and tension forces by effectively distributing concentrated loads deep into the surrounding base material. From wedge and sleeve anchors to drop-in and masonry screws, concrete anchors form the vital load-bearing links in modern construction and industrial engineering.

Materials and Finishes

To handle significant mechanical stress and resist environmental decay, concrete anchors are manufactured from premium, high-strength materials. The primary materials used are tough Carbon Steel and highly corrosion-resistant Stainless Steel. These anchors are offered in superior structural grades, including Class 8.8, ASTM A193 B7, and stainless grades A2 and A4, ensuring they can support immense loads without yielding.

Concrete anchors must often endure harsh, exposed environments. To prevent rust and structural degradation, they are supplied with robust protective finishes:

• Zinc Plated: For standard indoor or dry outdoor environments.
• Hot-Dip Galvanized: Providing a thick, durable zinc barrier for extreme weather and moisture exposure.
• Zinc-Aluminium Flake Coating: Offering exceptional galvanic corrosion resistance, ideal for highly corrosive industrial or coastal settings.

Technical Specifications and Standards

Designed for Medium to Heavy Duty load capacities, these anchors are certified against a comprehensive suite of international engineering standards. They comply with critical structural codes such as ACI 318, EN 1992-4, and ISO 7412, as well as an array of ASTM standards (E488, F1554, E3121, A307, F3125, etc.) and DIN 6914.

They are capable of achieving impressive Ultimate Tensile Strengths ranging from 400 MPa to 800 MPa. Concrete anchors utilize varied thread types depending on their design, including standard Metric Machine Threads (for sleeve and drop-in anchors) and specialized Wedge Anchor Threads.

Common Applications and Industries

Concrete anchors are foundational to heavy construction, structural engineering, and facility maintenance. They are formulated for use in solid concrete, brick, and hollow block. Common industrial applications include:

• Anchoring structural steel columns, beams, and base plates to concrete foundations.
• Securing heavy industrial machinery, generators, and manufacturing equipment to factory floors.
• Installing heavy-duty racking systems, warehouse shelving, and structural frameworks.
• Mounting ledger boards, facades, and large infrastructural pipework.

Conclusion

Concrete anchors are indispensable for safely transferring heavy structural loads into solid and porous masonry substrates. Built from high-tensile materials and coated with advanced protective finishes, these heavy-duty fasteners ensure the stability, safety, and longevity of critical connections in commercial construction and industrial infrastructure.
